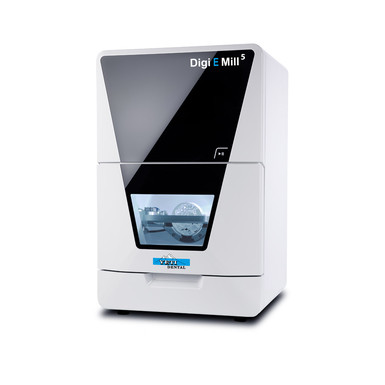

DIGI E MILL 5
DOWNLOAD: DIGI E MILL 5 PDF
About the product:
Neither an external compressed air connection is required for the Digi E Mill5, nor a built-in compressor is needed. This is made possible by the AIRTOOL, which has also been filed for patent. The turbine blades of the AIRTOOL generate high speeds that ar
Manufacturer: Yeti Dental
Description
Made in Germany - 100% developed and manufactured in Germany.
5 axes
1 blank
6 blocks
17 tools
Dry
Milling
CAM software included
Free of compressed air through innovative AIRTOOLs
Neither an external compressed air connection is required for the Digi E Mill5, nor a built-in compressor is needed. This is made possible by the AIRTOOL, which has also been filed for patent.
The turbine blades of the AIRTOOL generate high speeds that are of the high-frequency spindle a strong air flow, which freely from chips and dust. These are removed by the suction.
Airtools are available for: Composites / Pmma, Wax / Zircon.
Easy installation
Simple installation via LAN and CAD/CAM software
no calibration necessary!
environmentally friendly shipping possible due to the low machine weight
Free choice of location - thanks to freedom from compressed air
Compact design
generously sized workspace
Convenient clamping of the workpieces or loading of the automatic tool changer
Usable materials
Composites, Plastic/Wax, Zirconia, CoCr Sintered Metal
No metal - only sintered CoCr possible!
Indications
Crowns, bridges, inlays, onlays, veneers, bite splints, Full dentures, denture frameworks, implant bars, abutments, screw-retained crowns, screw-retained bridges, drilling templates, Primary crowns, secondary crowns, model plates, Model socket teeth
Service-optimized machine concept
reduced service effort - easy maintenance also possible by end customers
no service technician, the customer can do everything himself
In the event of a sevice, important components such as the spindle and control system can be easily replaced by the operator
No more special tools needed, everything very easy
Effective / economical
Up to 30% savings in machining blanks
Millable up to the outer edge of the blank due to special clamping system
sustainable operation, as no compressed air is required
Flexible
Mills almost all materials up to CoCr sintered metals in 98.5-mm round format
optional: holder for 110 mm circular blanks
optional: holder for blocks - for up to 6 blocks of different sizes
maximum indication variety due to +-35° rotation angle in the 5th axis and blanks up to 40 mm thick
DENTALCAM software with open interface to all scanners and materials
Fast & Precise
800 watt spindle with 60,000 rpm
3 µm repeatability
Aluminum cast body for low vibration operation
Big time saver:
50% faster data import (nesting)
Improved milling times: Mill crowns in less than 10 minutes
Characteristics
Applications: Dry processing
Materials: Composites, Plastic/Wax, Zircon, CoCr Sintered Metal Rounds, thickness 10-40 mm, Diameter 98.5 mm blocks up to 40 x 20 x 20 mm (requires block holder)
Indications: Crowns, bridges, inlays, onlays, veneers, bite splints, Full dentures, denture frameworks, Implant bars, abutments, screw-retained crowns, screw-retained bridges, drill templates, primary crowns, Secondary crowns, model plates, model- Plug te
Holder systems: Holder for 98.5 mm probes (integrated) Holder for 110 mm probes (optional) Block holder (optional) Ivotion1 accessory kit (optional)
Number of axes: 5
Rotary axis: Rotation angle: 360° (A axis), +-35° (B axis)
Lighting: Backlit workspace through RGB LED lighting with status indicator
Spindle: High-frequency spindle with electromechanical tool change up to 60,000 rpm
Collet: for tools with 3 mm shank diameter and max. 40 mm total length (compatible with the previous tools)
Performance: Power output (Pmax): 800 watts - Peak power (S6): 400 watts - Continuous power (S1): 300 watts
Tool change: Tool magazine for 16 tools with separate space for one AIRTOOL
Length measurement and tool breakage control via precision measuring probe. - Access via workspace door, safety-locked
CAM Software: DENTALCAM software CAM + CNC software (free of charge) included
Dry: Compressed air free operation through the use of AIRTOOLs - Hose connection for external suction cup on the rear wall of the housing - 24 V switching output for the Control of suction units
Current: 100-240 volts - 50/60 Hz, 500 watts
Suction: Filter class M, 2,500 l/min air flow, 200 hPa negative pressure
Temperature: between 10 °C and 35 °C
Humidity: max. 80 % (relative), non-condensing
Weight: 43 kg
| | |
